AviTab - The Aviator's Tablet with PDF viewer, moving maps and more

[Adapted from: https://github.com/fpw/avitab/blob/master/README.md]

AviTab is a plugin for the X-Plane flight simulator (versions 11.20+ and 12). It displays a tablet like computer with a few apps in the cockpit and is mainly used for flying in virtual reality. But is also very handy in windowed mode, with integrations such as Zibo's B737-800X, it truly enhances the flight experience with a fully functioning EFB in the virtual cockpit.

Purpose

When flying in a simulator, one often needs to lookup details in PDF charts, plane manuals, checklists or other documents. Using a PDF reader breaks the immersion because the virtual aviator either has to take off of their HMD or use other tools that can move windows into VR.

AviTab tries to solve this problem by offering a PDF reader inside a native plugin for X-Plane. Using a plugin also opens possibilites for more apps inside the tablet, for example to display information about the plane status or aid in navigation.

Features

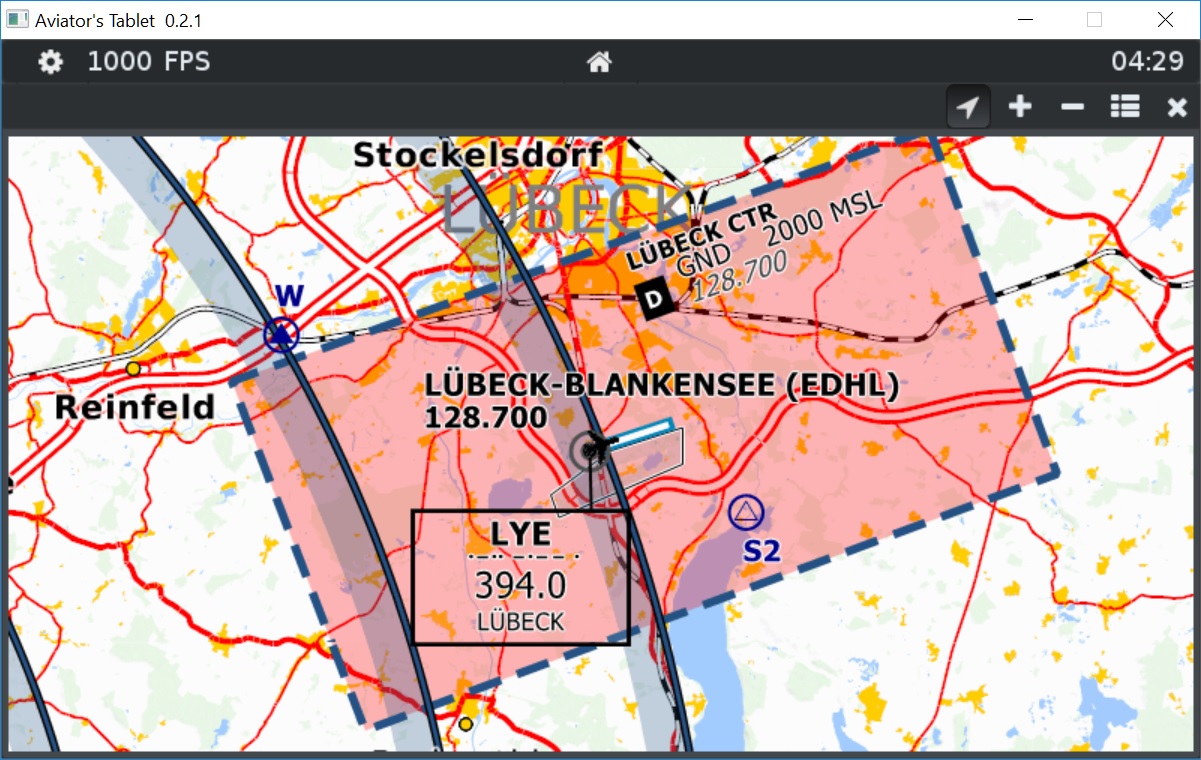

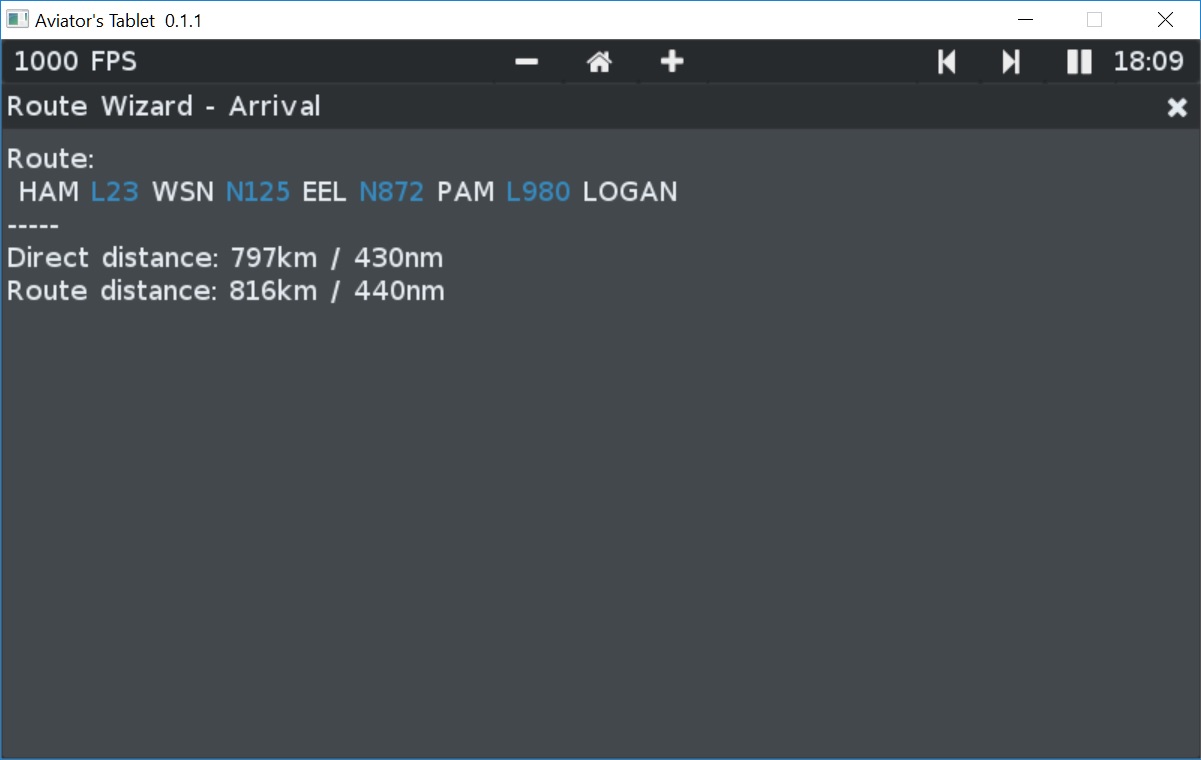

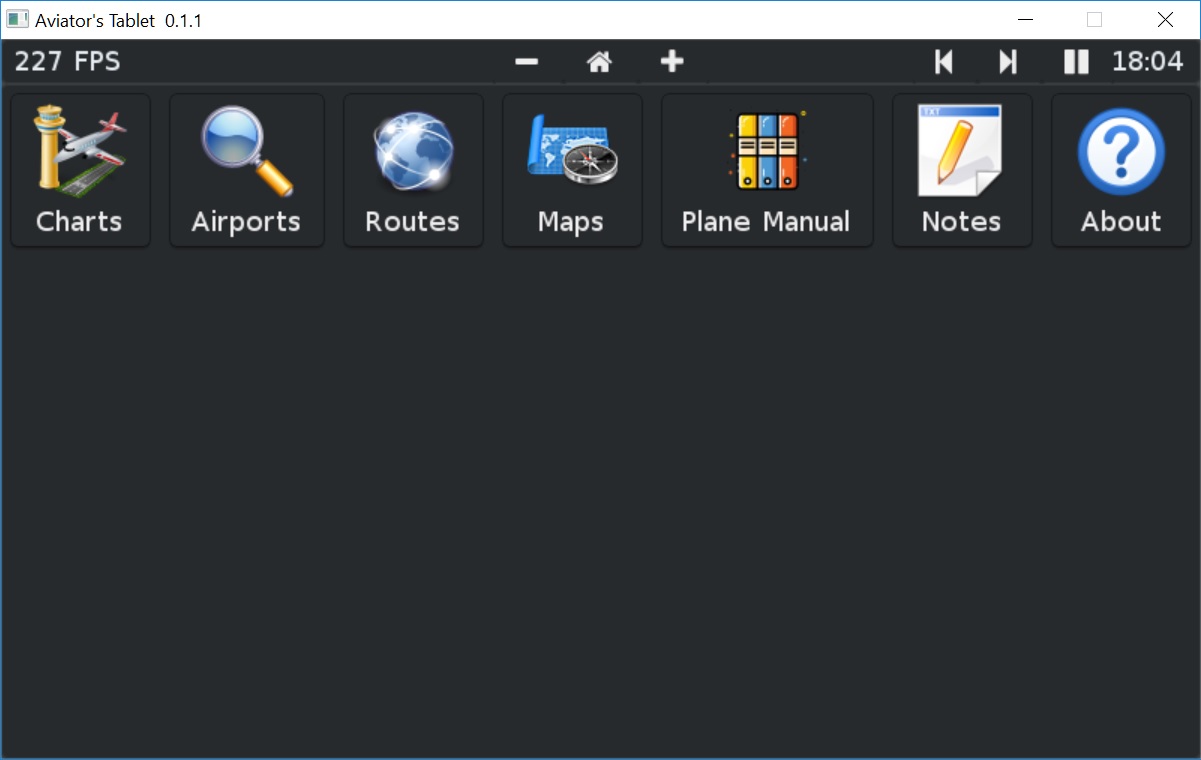

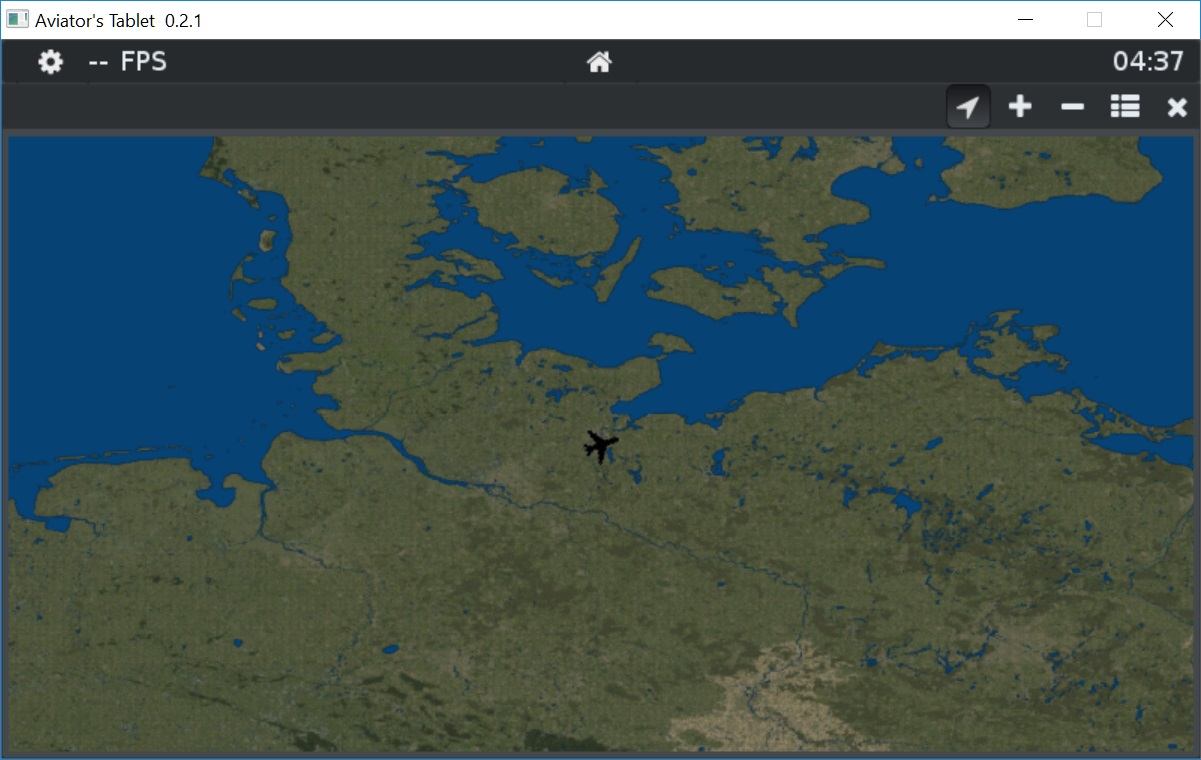

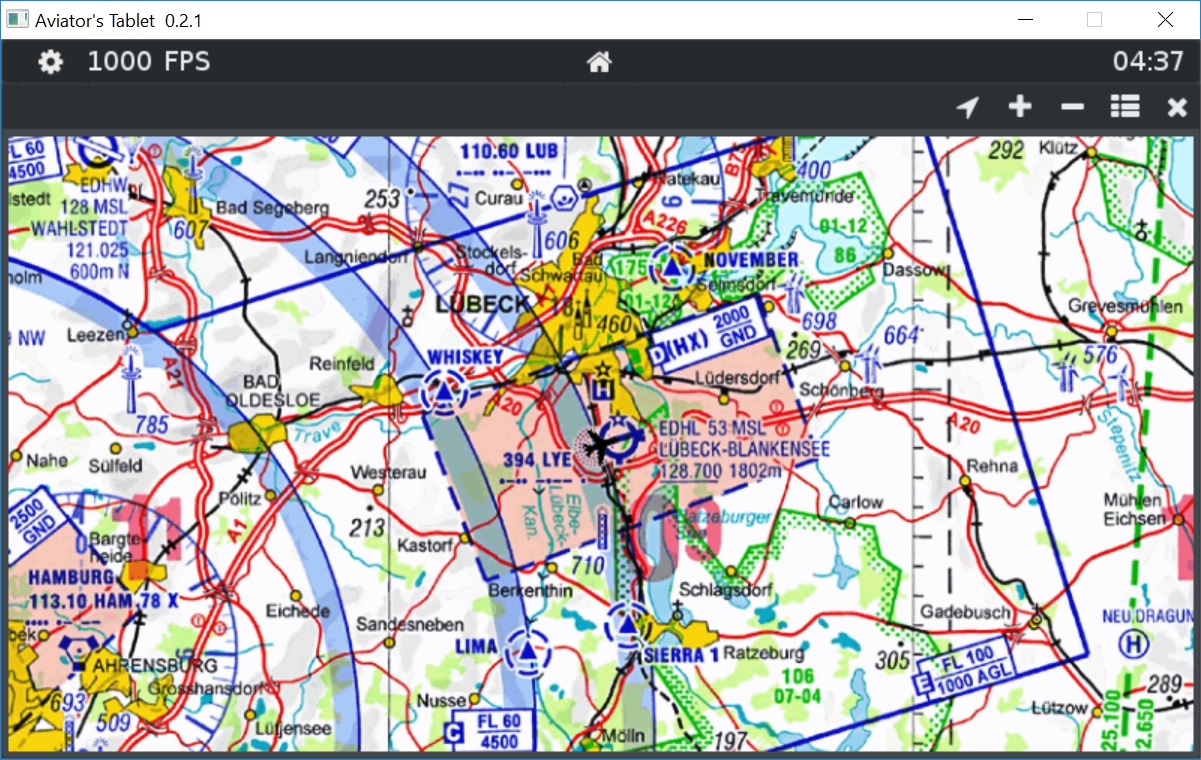

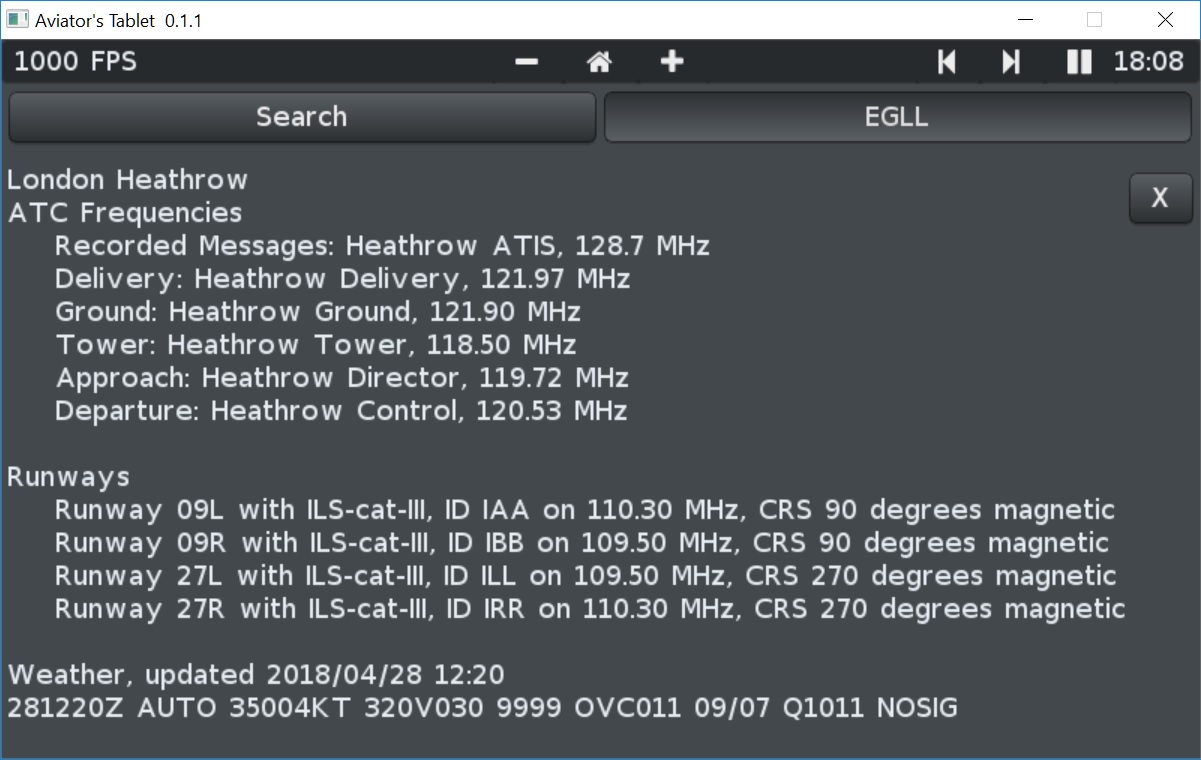

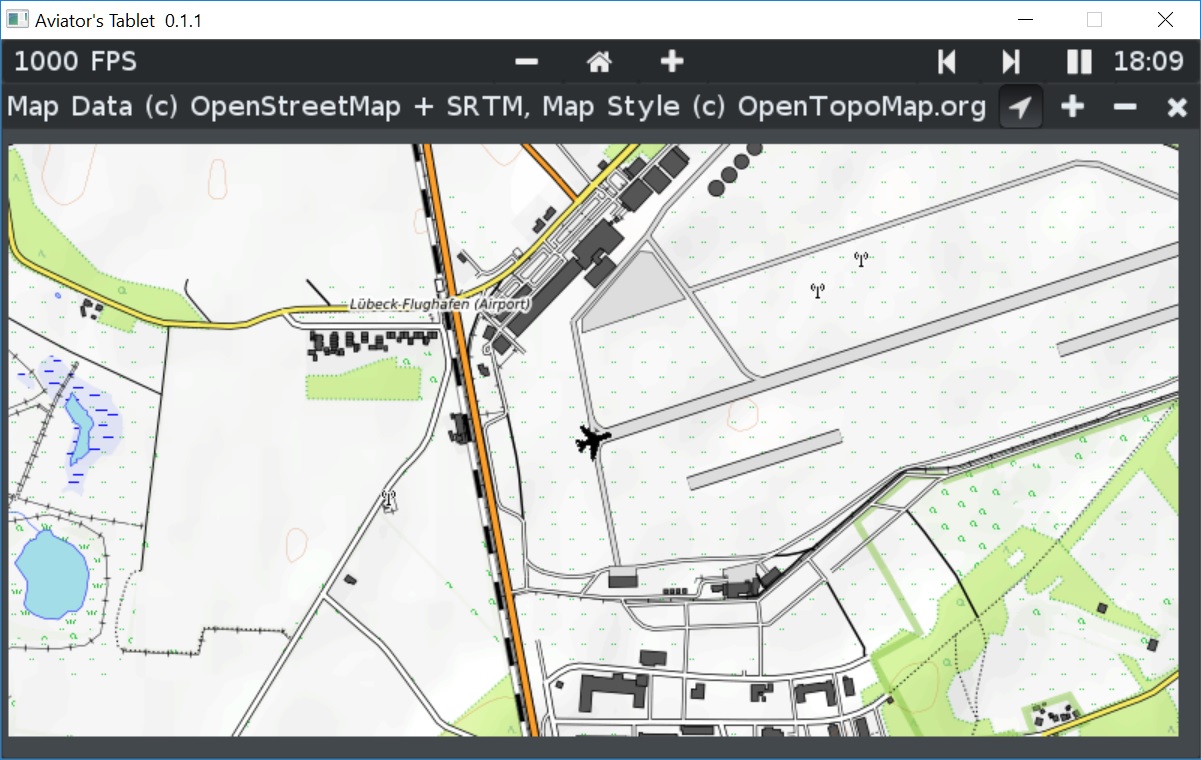

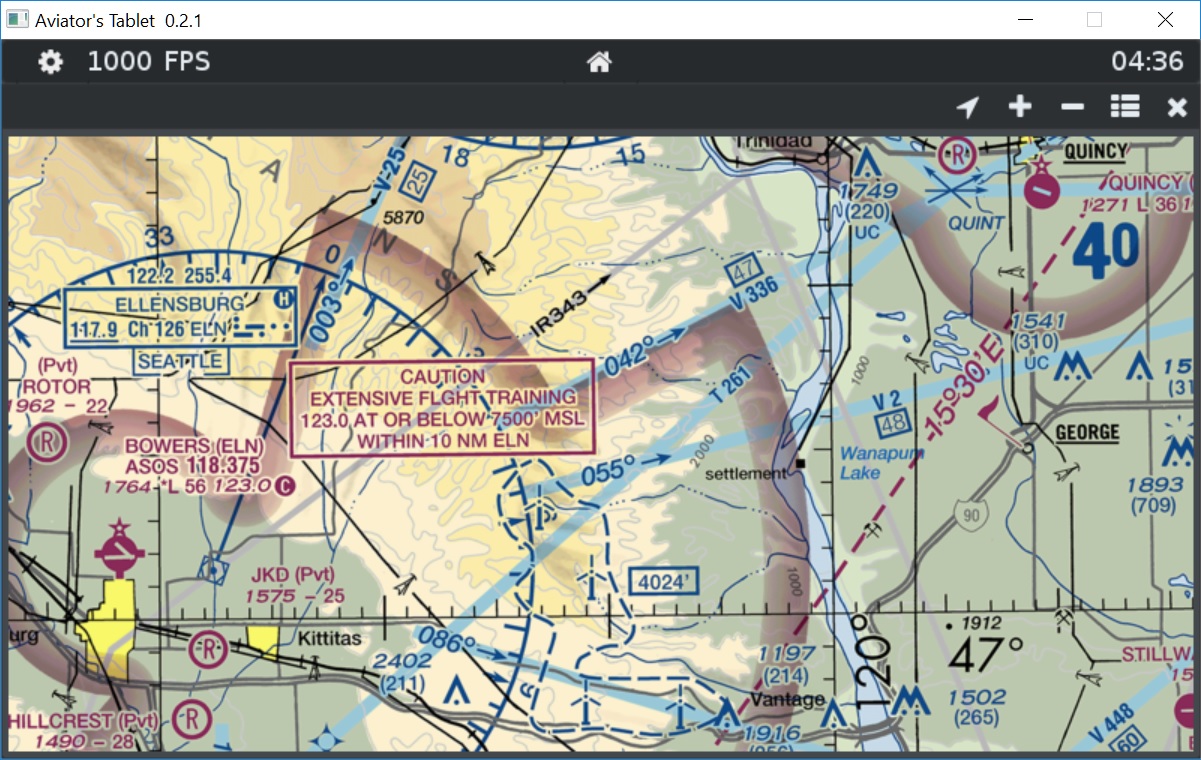

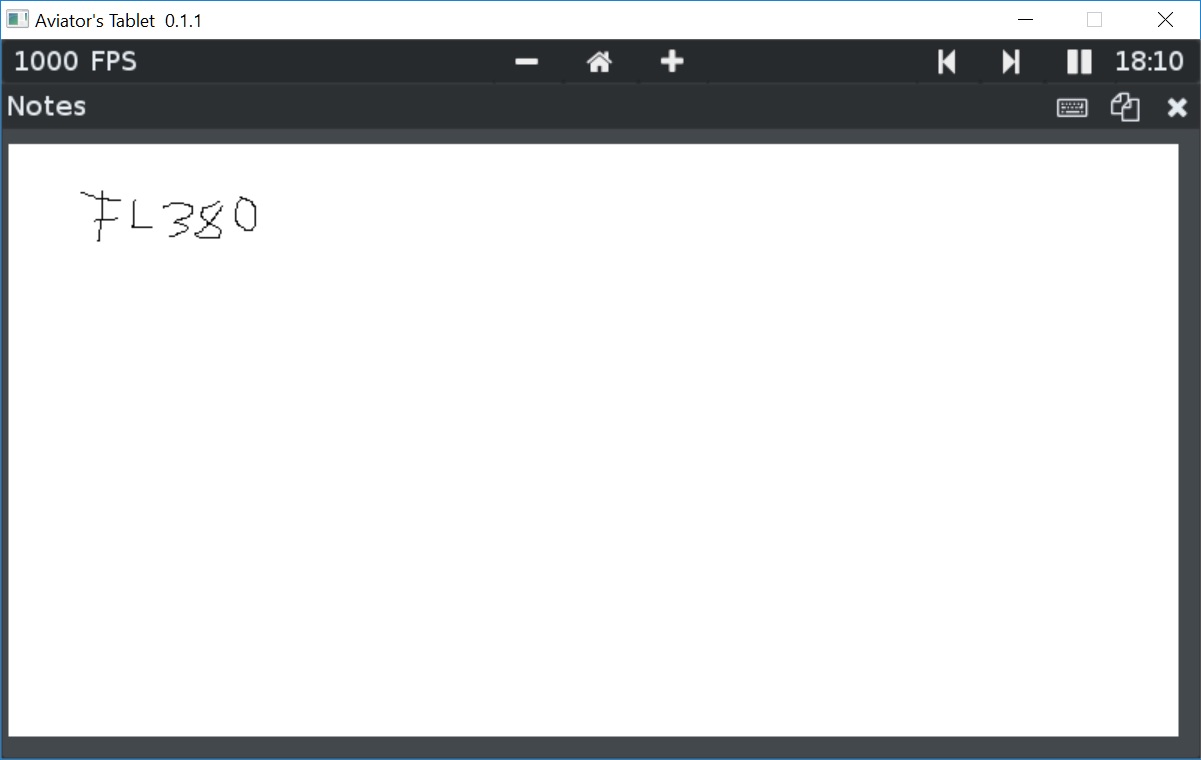

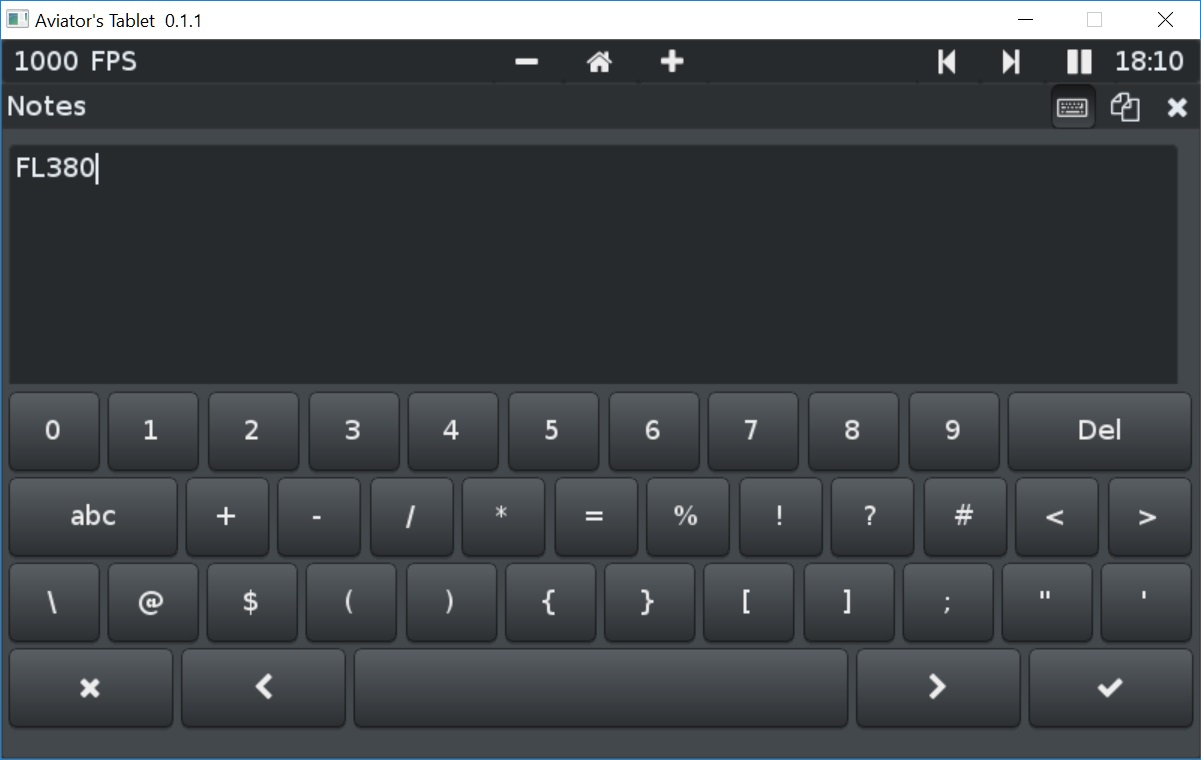

Let the screenshots speak! Note that these were taken using the standalone version for better resolution, but all of this is available right inside your VR cockpit.

Usage

General

When hovering over the edges of the tablet from a short distance, X-Plane will display green bars around the tablet. The upper bar can be used to grab the window and move it around inside the cockpit.

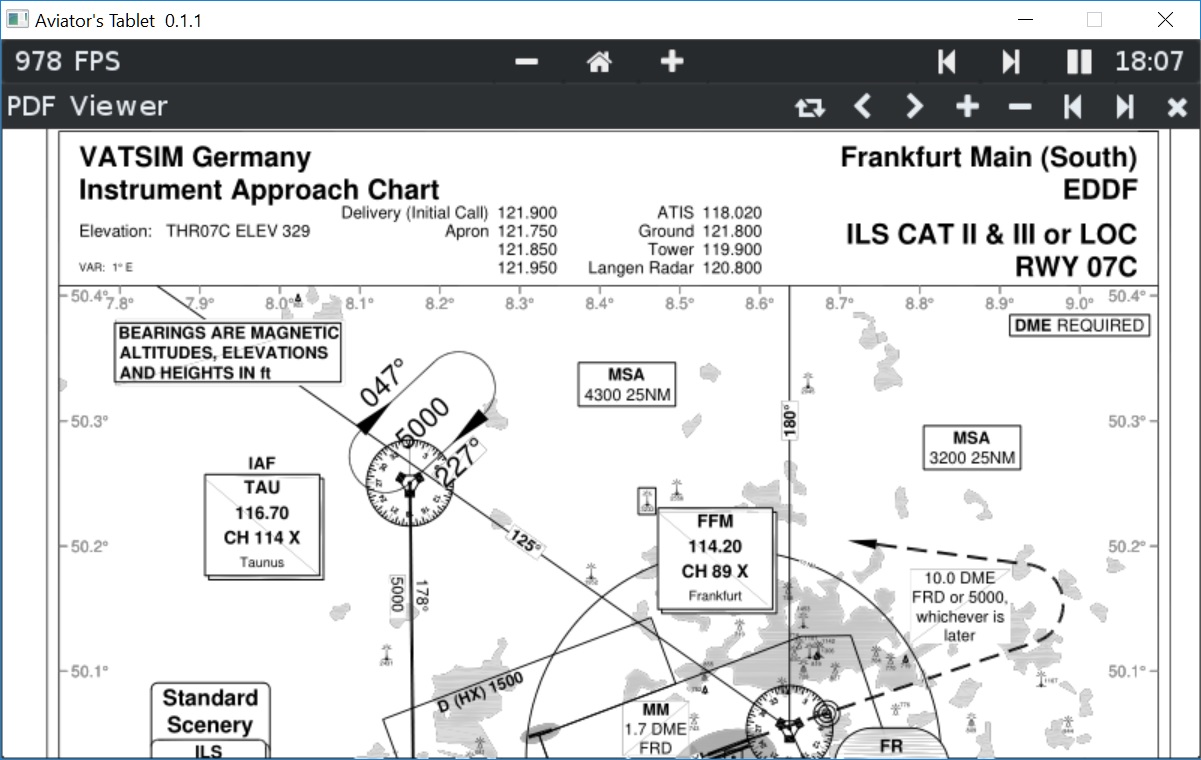

Charts Viewer

The charts viewer displays PDF files inside the charts/ subdirectory of the plugin/ directoy. You can add your charts there, including subdirectories.

Limitations

PDFs containing CJK fonts or ancient fonts such Linear B are not supported. This is mainly due to font sizes - a version containing all fonts would be 40 Megabytes in size.

Support

AviTab has its own support section on X-Plane.org (https://forums.x-plane.org/forums/forum/425-avitab-plugin/). There is also a thread with tutorial videos that show how to install AviTab, how to use the Navigraph integration and more.

Donate

If you like AviTab and want to support its further development, you can donate.
